Available in: 0.30mm to 0.60mm thickness for all your needs in Roofting & Cladding.
Technical Specification (Variation+/-100mm)
| Total Coating Thickness (TCT) 0.30mm, 0.35mm, 0.45mm, 0.50mm, 0.60mm, 0.80mm |
||||
|---|---|---|---|---|
| Profile | Effective Width (EW) | Pitch (P) +/-5mm | Depth (D) +/-2mm- | Sheet Width (5W) |

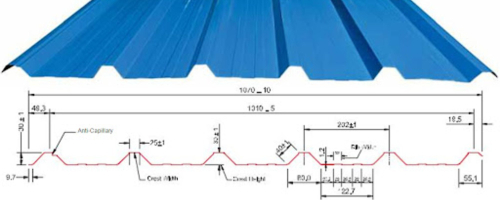

| Trapezoidal | 1015mm | 200mm | 28mm | 1072mm |

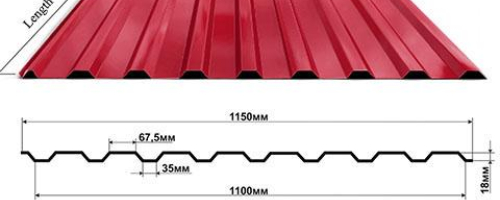

| HI-RIB | 1000mm | 200mm | 30mm | 1060mm |
Off-White
Brick-Red
Environmental Caulfield
Environmental Caulfield
Sky Blue
Royal Blue
Grey
Seco Red
Above Showing colour shades are only reference purpose and may vary from actual one.
Can also supply special colour in quantity requirement.
